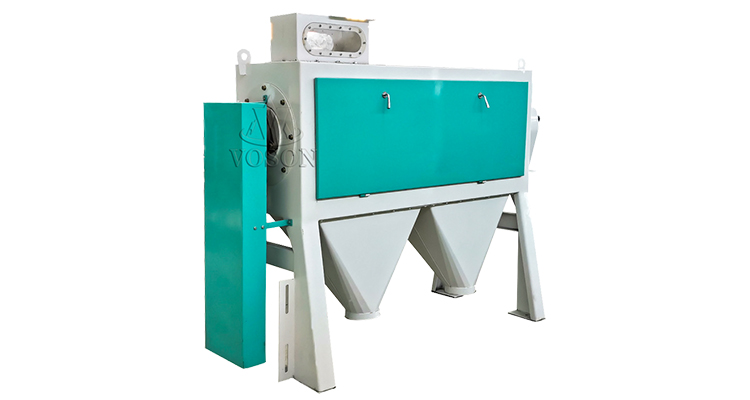

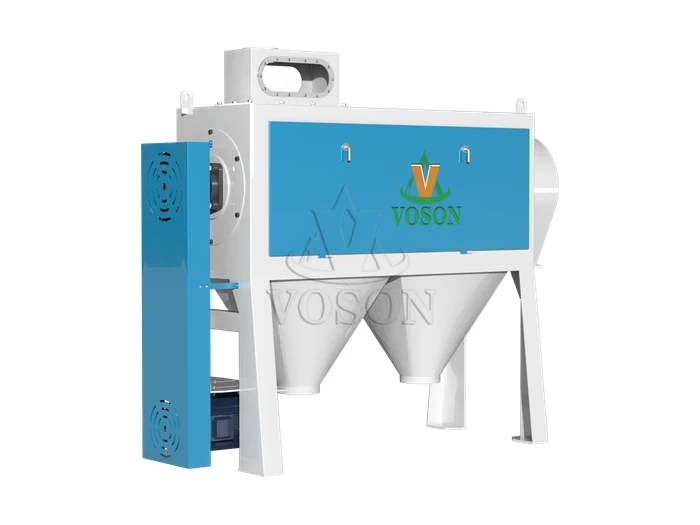

FDMWA Series New Friction Wheater est une solution Voson pour la transformation des céréales, avec une configuration flexible, une production stable et un service technique complet.
Used in the nettoyage process of farine mills, it can rub and break away impurities such as soil and blé wool in the groin on the surface of blé grains, and can also break and separate the mud lumps mixed in the blé and the diseased and deteriorated blé grains with poor strength.
Below is the parameters of one of our options, feel free to contact for more details if you are interested in our product!
| Model | Capacity (t/h) | Power(k w) | Screen diameter(mm) | Screen length(mm) | Weight (kg) | Size(mm) |
| FDMW A30*60 | ≤12 | 7.5-15 | ∮300 | 600 | 760 | 1220*600*1615 |
| FDMW A45*80 | 12-25 | 15-22 | ∮450 | 800 | 980 | 1460*800*1876 |
1、The rotor is dynamically balanced, running smoothly, and no special balancing is required to replace the beater.
2、A supplementary air window is added, which is convenient for supplementary air when sucking air;
3、A heavy hammer-type adjustable pressure gate is added at the discharge end, which is convenient to adjust the frictional impact effect and flow of the material;
4、Optional self-circulating air separator and special vertical suction duct, the effect of light and impurities separation is better.
In the nettoyage section, there are several aspiration systems that can reduce the dust spray-out from the machine and keep a good working environment.
This is a complicated flow, that can remove most of the coarse offal, middle size offal, and fine offal in the grain. The nettoyage section is not only suitable for grain with lower moisture, but also the dirty grain.
In the mouture and sieve section, there are four types of systems to moulin the blé to farine.
The whole design will insure less bran is mixed into the bran and the farine yield is maximized. The whole moulin material is transferred by a High-pressure fan. The mouture room will be clean and sanitary.
All packaging machines are automatic. The packaging machine has advantages of high measuring accuracy, fast packing speed, reliable and stable working. The packing machine has the function of fault self-diagnosis. Its sewing machine has automatic sewing and cutting function.
The packaging machine is with sealed type bag-clamping mechanism, which can prevent material from leaking out. There are many types of specification like 1-5kg, 2.5-10kg, 20-25kg, 30-50kg. The clients can choose different packing specifications according to requirements.
