Floconneuse de maïs : informations, configuration et solution Voson pour la transformation des céréales, avec accompagnement technique et service clé en main.

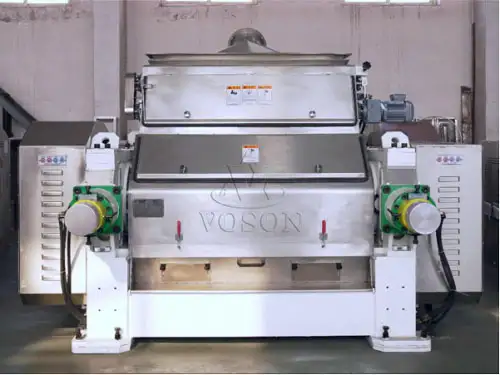

The Corn Flaking Machine is a core component in transformation des céréales industry and ruminant feed production, designed for rolling steamed maïs kernels into thin, uniform flakes. This flaker ensures improved digestibility, palatability, and nutritional availability for cattle and sheep. Our maïs floconnage équipement features a robust dual-roll structure, precise flake thickness control, and compatibility with large-scale production lines.
Ideal for use in steam floconnage lines for cattle, dairy cow, and sheep feed mills, the VOSON floconnage machines are engineered for efficiency, durability, and consistent output quality.
The maïs floconnage machine operates by feeding steamed and conditioned maïs kernels through two large, precision-ground rollers. The grain is compressed between the rolls to form uniform flakes. The use of steam conditioning before floconnage softens the kernel, reduces resistance, and allows better flake formation. This process enhances starch gelatinization, increasing feed digestibility in ruminants.
The VOSON Series Corn Flaking Machine is commonly used in the following process flow:
| Model | Capacity (t/day) | Main Motor Power (kW) | Flake Thickness (mm) | Machine Size (mm) |
|---|---|---|---|---|
| VS6060F | 30 – 40 | 15 × 2 | 1.2 – 2 | 1600 × 2100 × 1650 |
| VS6100F | 60 – 80 | 22 × 2 | 1.2 – 2 | 2000 × 2100 × 1650 |
| VS6125F | 100 – 120 | 30 × 2 | 1.2 – 2 | 2300 × 2100 × 1650 |
| VS6150F | 150 – 180 | 37 × 2 | 1.2 – 2 | 2600 × 2200 × 1750 |
Custom sizes and rollers available upon request.
Uniform Flaking Performance: Dual-roll pressure ensures evenly processed maïs flakes with adjustable thickness (1.2–2.0 mm).
Energy-Efficient Drive System: Equipped with high-efficiency motors, reducing power consumption.
Heavy-Duty Frame Design: Supports stable operation under high-capacity, continuous feed conditions.
Precise Control Mechanism: Includes adjustable feeding system and overload protection.
Low Maintenance Requirements: Components are wear-resistant and easy to replace.
Q1: Can this machine process other grains besides maïs?
A: It is optimized for maïs, but also applicable to sorghum and barley after adjustment.
Q2: What is the flake thickness range?
A: Adjustable from 1.2 mm to 2.0 mm via roller gap settings.
Q3: How is steam conditioning handled?
A: We offer integrated or external steam conditioner options depending on your installation layout.
Q4: Is it compatible with full feed lines?
A: Yes. It can be integrated into new or existing automated feed lines.
