Plansichter carré série FSFG : informations, configuration et solution Voson pour la transformation des céréales, avec accompagnement technique et service clé en main.

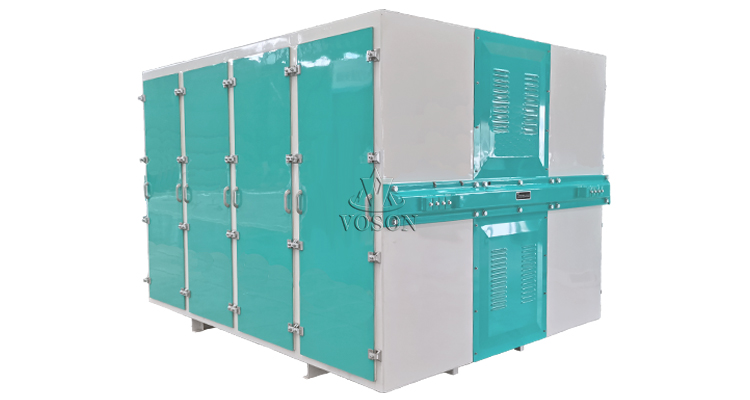

Square plansifter used to screen and classify the ground materials and various granular materials. It is equipped with 2, 4, 6, 8 or 10 bins, each bin can have 16-30 screen grids, and the screen area is 12-131m2.
1、High strength and good rigidity
2、No leakage, good sealing;
3、Large screening area;
4、The special three-bearing + spring drive support structure and lubricating oil anti-leakage structure rationally distribute the bearing force and effectively prolong the service life of the bearing.
Below is the parameters of one of our options, feel free to contact for more details if you are interested in our product!
| Model | 4x16 | 6x16 | 8x16 | 2x24 | 4x24 | 6x24 | 8x24 | 10x24 | 4x28 | 6x28 | 8x28 | 10x28 | |
| Sieve boxheight(mm) | 640 | 1800 | 1800 | 1800 | 2300 | 2300 | 2300 | 2300 | 2300 | 2470 | 2470 | 2470 | 2470 |
| 740 | 1800 | 1800 | 1800 | 2300 | 2300 | 2300 | 2300 | 2300 | 2470 | 2470 | 2470 | 2470 | |
| Sieve frame height(mm) | 640 | 1395 | 1395 | 1395 | 1865 | 1895 | 1895 | 1875 | 1875 | 2035 | 2035 | 2035 | 2035 |
| - | - | - | |||||||||||
| 1435 | 1435 | 1435 | 1955 | 1935 | 1935 | 1915 | 1915 | 2075 | 2075 | 2075 | 2075 | ||
| 740 | 1395 | 1395 | 1395 | 1865 | 1865 | 1865 | 1865 | 1865 | 2035 | 2035 | 2035 | 2035 | |
| 1435 | 1435 | 1435 | 1955 | 1905 | 1905 | 1905 | 1905 | 2075 | 2075 | 2075 | 2075 | ||
| Mini installheight(mm) | 640 | 2800 | 2800 | 2800 | 3300 | 3300 | 3300 | 3300 | 3300 | 3540 | 3540 | 3540 | 3540 |
| 740 | 2800 | 2800 | 2800 | 3300 | 3300 | 3300 | 3300 | 3300 | 3540 | 3540 | 3540 | 3540 | |
| Power(kW) | 640 | 3 | 4 | 5.5 | / | 3 | 4 | 7.5 | 15 | 4 | 5.5 | 11 | 15 |
| 740 | 3 | 5.5 | 7.5 | 3 | 5.5 | 7.5 | 11 | 18.5 | 7.5 | 7.5 | 15 | 18.5 | |
| RotationDia(mm) | Φ64+2 | ||||||||||||
| Main shift Rotaryspeed(r/min) | 245 | ||||||||||||
| Sifting surface(m2) | 640 | 17.7 | 26.5 | 35.3 | / | 26.5 | 39.7 | 53 | 66.25 | 30.9 | 46.4 | 61.8 | 77.3 |
| 19.9 | 29.9 | 39.8 | / | 29.9 | 44.8 | 59.7 | 74.6 | 34.8 | 52.2 | 69.7 | 87.1 | ||
| 22.1 | 33.2 | 44.3 | / | 33.2 | 49.8 | 66.4 | 83.0 | 38.8 | 58.1 | 77.5 | 96.9 | ||
| 740 | 24.8 | 37.2 | 49.7 | 18.6 | 37.2 | 55.9 | 74.5 | 93.1 | 32.3 | 65.2 | 86.9 | 108.6 | |
| 28.2 | 42.2 | 56.3 | 18.6 | 42.2 | 63.4 | 84.5 | 105.6 | 49.3 | 73.9 | 98.6 | 123.3 | ||
| 30.1 | 45.1 | 60.2 | 18.6 | 45.1 | 67.7 | 90.2 | 112.8 | 52.6 | 79 | 105.3 | 131.6 | ||
| Weight(kg) | 640 | 2550 | 2800 | 3200 | / | 2900 | 3550 | 5200 | 5600 | 3350 | 4100 | 5600 | 6000 |
| 740 | 2900 | 3150 | 3500 | 1600 | 3700 | 4550 | 6000 | 6600 | 3950 | 4900 | 6500 | 7000 | |
Nous recevons des demandes en anglais, espagnol, russe, français et arabe. Notre équipe professionnelle vous répondra dans un délai d'un jour. N'hésitez pas à nous contacter !
