Moulin de laboratoire : informations, configuration et solution Voson pour la transformation des céréales, avec accompagnement technique et service clé en main.

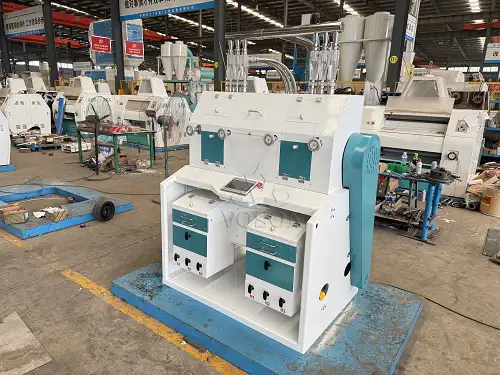

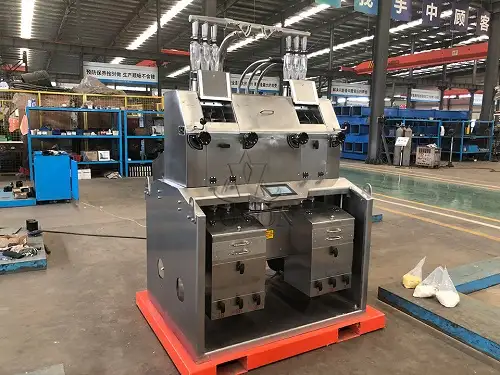

The Voson Laboratory Mill is a state-of-the-art experimental farine mouture machine designed for laboratories, research institutes, and mouture companies. It simulates industrial mouture processes in a compact form, providing accurate data on blé mouture performance, farine yield, and grain quality.
This moulin adopts Voson’s leading “Three Breaks and Three Reduction” process, ensuring precise farine separation and consistent results. Equipped with advanced design features, the Laboratory Mill guarantees clean, efficient, and safe operation in any testing environment.
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Max capacity | 10 kg/h | Screen speed | 298 r/min |
| Roller model | φ155×200 mm | Screen rotation diameter | φ23 mm |
| Fast roller speed | 500 r/min | Air volume | 669 m³/h |
| Fluted roller speed ratio | 2.5:1 | Air pressure | 2710 Pa |
| Smooth roller speed ratio | 1.5:1 | Size (L×W×H) | 1330×1100×1870 mm |
| Power | 1.5 + 1.5 + 0.55 kW | Weight | 650 kg |
Leading “Three Breaks and Three Reduction” Process – Provides precise separation of bran, germ, and endosperm for reliable laboratory testing.
Quantitative Feeding System Without Blockage – Ensures smooth grain flow, preventing clogging or bridging.
Integrated Pneumatic Lifting System – Efficient grain transport with minimal accumulation.
Rotary Screening System – High efficiency with low material buildup.
Integrated Receiving Hopper and Screening Design – Clean, hygienic, and dust-free operation.
Flexible Power Transmission for Break and Reduction Rollers – Smooth, reliable mouture.
Automatic Conical Cleaning of Screen Surface and Hull – Maintains screening efficiency.
Electric Control System – Convenient operation and precise control.
The Voson Laboratory Mill is essential for blé mouture experiments, farine quality evaluation, and production optimization. It allows mouture companies and laboratories to test new blé varieties, evaluate farine characteristics, and plan industrial-scale mouture processes under controlled, repeatable conditions.
This compact moulin also protects downstream équipement in full-scale production by providing reliable pre-testing data, ensuring optimal results and efficient farine production.
Voson is a professional manufacturer of farine mouture équipement with decades of experience in transformation des céréales. The Laboratory Mill combines patented mouture technology, precise feeding, and high-quality materials to provide consistent, reliable, and hygienic laboratory mouture performance.
Choosing Voson ensures accurate testing, repeatable results, and professional support for your mouture research and experimental projects.
