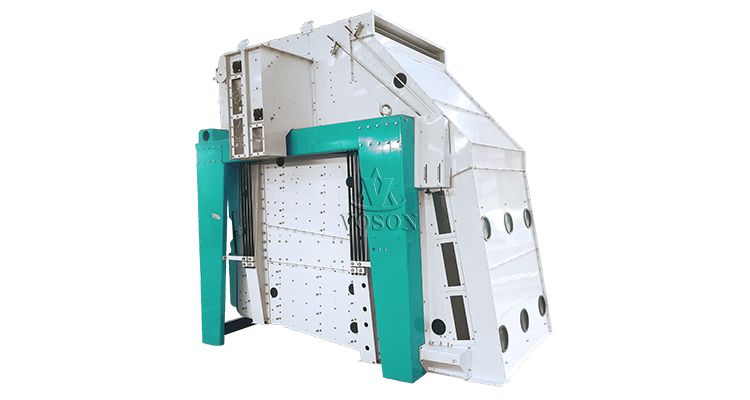

Le crible rotatif combiné multicouche est conçu pour le nettoyage, le classement et le tri des grains dans les minoteries et les lignes de transformation.
Le crible rotatif combine multicouche HZZD est conçu pour le nettoyage, le classement et le tri des matières premieres. Il convient aux minoteries, aux installations de transformation du riz, aux lignes d'alimentation animale et à d'autres applications de traitement des grains.
HZZD Series Crible rotatif combiné multicouche mainly used for raw material nettoyage or grading in installation de mouture de farine, animal feedingplanbt,rice miling installation, industrie chimique industry, oil extraction installation and otherindustries.
1.Combination multi-function, four groups ofeight-ayer screen configuration, and parallelcleaning of materals (large, medium and small impurities), large effective screeningarea, high output, and good nettoyage et grading effect;
2.With its own suction separation, sedimentation and impurities removal system, it caneffecively clean up light impurities and dust (extemal suction) and discharge it out of themachine at any time;
Below is the parameters of one of our options, feel free to contact for more details if you are interested in our product!
| Model | Max working capacity(t/h) | Outer connection suction capacity(m³/h) | Dimension(mm) | Weight(kg) |
| HZZD150-200/8 | 120-140 | 12000 | 3462*2445*3892 | 6100 |
| HZZD200*200/8 | 150-180 | 15600 | 3462*2945*3892 | 7100 |
Maize farine processing steps can be divided into 5 sections: nettoyage, conditioning, degerminating, mouture and sifting, packing.
During nettoyage, first use a vibrating grading sieve or a primary nettoyage sieve to remove impurities such as maïs stalks, sand, and large stones.
Generally, the combined nettoyage screen are used for small scale maïs mouture machine, such as 5-20 tons per day maïs moulin.
Then, there is a gravity grading screen is also a stoner, which cleans the small stones of maïs seeds again to ensure the cleanliness of the raw materials. The principle is to use the different weights of impurities and maïs. And for the large capacity maïs processing ligne, there are vibrating screen and gravity classifier, even magnetic separator. Get Détails
The purpose of using a moisture-proof device to adjust maïs is to reduce the binding force between maïs skin and endosperm, reduce endosperm strength, and be more conducive to grinding. Get Détails
The purpose of peeling and degerming of maïs is to obtain more products suitable for different food requirements. However, there are also many nutrients in maïs husks and germs, such as cellulose, and peeling the husks means that we lose some of them. Get Détails
The processed raw materials are ready to enter roller mills. Through the reciprocating grinding of the mouture machine, the maïs is grounded into farine. The roller mills have divided into two kinds of types:
Like the nettoyage machine, we manufacture various of mouture machine, and the right one will be applied in the small scale maïs meal mouture installation, for example, 10t posho mouture machine, 20t maïs mouture machine, and 30tpd maïs farine mouture machine.
The left one has a large capacity of mouture, so it's applied in industrial and commercial maïs mouture installation, such as 100-500t maïs mouture installation. Get Détails
Milled maïs will be sieved with high square, a double bin sieve, or a single square sieve to obtain maïs meal and maïs grits of different fineness. And the rest of not passed though the sieve will be milled again.
The packaging machines are divided into manual and automatic. If your business is relatively small, an electronic scale and a sewing machine are enough. If your production scale is large, then the automatic baler will be your assistant and save a lot of workers, higher efficiency.
There are other kinds of packaging machine that is more affordable for you to choose. Get Détails
