Machine de lavage du blé série XMS : informations, configuration et solution Voson pour la transformation des céréales, avec accompagnement technique et service clé en main.

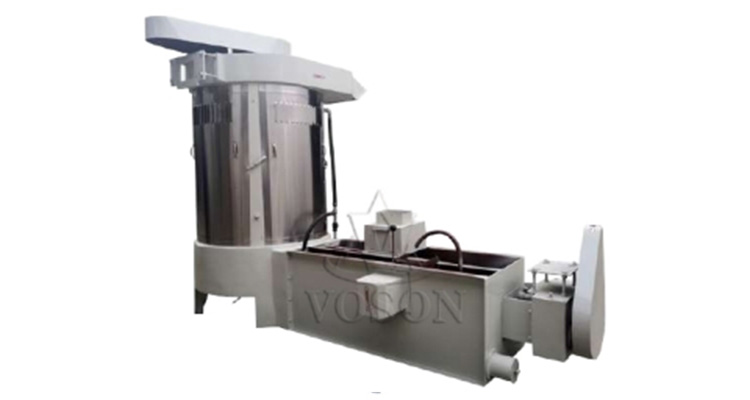

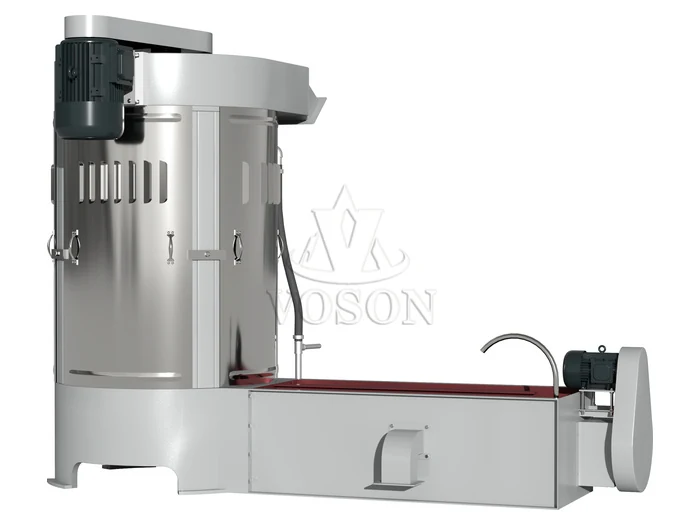

XMS series blé washing machine is one of the main equipments for nettoyage blé during transformation des céréales. It is mainly used to clean off the dust and pesticide residues on the surface of blé, and use the principle of specific gravity to remove the sand and gravel impurities in the blé. To ensure the cleanliness of the milled blé, reduce the ash and sand content of the farine, and improve the accuracy of the farine. It can also be used for nettoyage and nettoyage of other food crops.
Below is the parameters of one of our options, feel free to contact for more details if you are interested in our product!
| T y p e | C a p a c it y ( t/ h ) | S p in d le s p e e d( r / m m ) | D r y e r d ia m e ( m m ) | P o w e r ( k W ) | W e ig h t ( k g) | D o im e n s io n s ( L * W * H ) |
| X M S 3 0 | 0 . 5 | 9 3 0 | 3 0 0 | 6 / 0 . 7 5 + 4 / 1 . 5 | 2 3 0 | 1 4 5 0 × 5 5 0 × 1 1 6 0 |
| X M S 4 0 | 1-2 | 7 5 0 | 4 0 0 | 6 / 0 . 7 5 + 4 / 3 | 4 6 0 | 1 7 6 0 × 7 0 0 × 1 3 8 0 |
| X M S 5 0 | 2-3 | 6 0 0 | 5 0 0 | 6 / 1 . 1 + 4 / 4 | 9 0 0 | 2 1 5 0 × 9 5 0 × 1 6 5 0 |
| X M S 6 0 | 3-5 | 5 5 0 | 6 0 0 | 6 / 1 . 5 + 4 / 5 . 5 | 1 2 0 0 | 2 5 0 0 × 1 0 5 0 × 1 7 6 0 |
| X M S 8 0 | 5-7 | 4 8 0 | 8 0 0 | 6 / 1 . 5 + 4 / 7 . 5 | 2 1 0 0 | 3 1 0 0 × 1 4 5 0 × 2 1 5 0 |
| X M S 9 0 | 7-9 | 4 0 0 | 9 0 0 | 6 / 1 . 5 + 6 / 1 1 | 2 8 0 0 | 3 5 0 0 × 1 6 0 0 × 2 2 6 0 |
| X M S 1 0 5 | 1 0-1 3 | 3 6 5 | 1 0 5 0 | 6 / 1 . 5 +6 / 1 5 ( 1 8 . 5 ) | 3 5 0 0 | 3 6 8 0 × 1 6 5 0 × 2 4 6 0 |
1、The upper and lower bearings of the drying part are imported brands;
2、The fish scales, water retaining doors, sinks, etc. are made of stainless steel to prolong the service life;
3、It can increase the moisture and cooperate with the blé moistening process to change the special properties and grinding performance of blé.
In the nettoyage section, there are several aspiration systems that can reduce the dust spray-out from the machine and keep a good working environment.
This is a complicated flow, that can remove most of the coarse offal, middle size offal, and fine offal in the grain. The nettoyage section is not only suitable for grain with lower moisture, but also the dirty grain.
In the mouture and sieve section, there are four types of systems to moulin the blé to farine.
The whole design will insure less bran is mixed into the bran and the farine yield is maximized. The whole moulin material is transferred by a High-pressure fan. The mouture room will be clean and sanitary.
All packaging machines are automatic. The packaging machine has advantages of high measuring accuracy, fast packing speed, reliable and stable working. The packing machine has the function of fault self-diagnosis. Its sewing machine has automatic sewing and cutting function.
The packaging machine is with sealed type bag-clamping mechanism, which can prevent material from leaking out. There are many types of specification like 1-5kg, 2.5-10kg, 20-25kg, 30-50kg. The clients can choose different packing specifications according to requirements.
